Sharp Digital Full Colour Multifunctional System

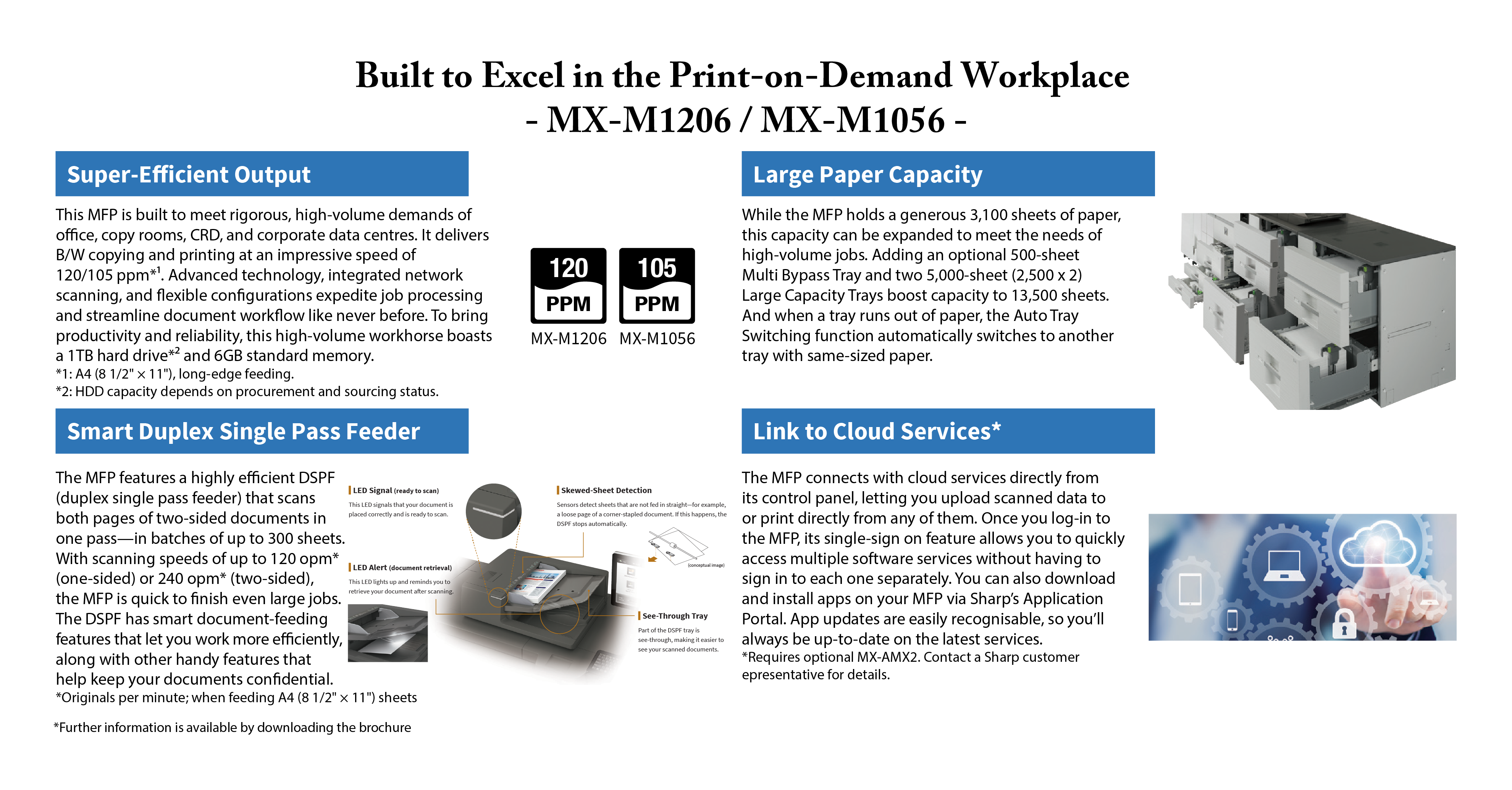

High-volume Document Performance You Can Trust
Is your enterprise calling out for a quality document solution to handle high-volume light production duties? Sharp’s new MFP answers the call. This powerful MFP comes with a wide range of configurable options that you can tailor to your needs. Whatever set-up you choose, you’ll get ultra-crisp B/W documents printed at 120/105 ppm.
Duplex scanning and smart paper-feeding technology keep production flowing smoothly. And single sign-on gives you easy access to a variety of cloud services. If you’re working in a critical print-on-demand environment, this is a powerful document solution you can trust.
| GENERAL (-) | |
| Type | Console |
| Engine speed (colour & B/W) | A4 (8 1/2" x 11")*1: Max. 120/105 ppm A3 (11" x 17"): Max. 54/52 ppm SRA3: Max. 52/49 ppm |
| Control panel display | 15.4-inch colour LCD touchscreen |
| Paper size | Max. SRA3/A3W (12" x 18"), min. A5 (5 1/2" x 8 1/2")*2 |
| Paper capacity(80 g/m²) | Standard: 3,100 sheets*3 (1,200-sheet tray, 800-sheet tray, 500-sheet tray x 2, and optional 100-sheet multi bypass tray) Maximu |
| Paper weight | Tray 1&2: 60 g/m2 to 105 g/m2 (16 lbs bond to 28 lbs bond) Tray 3&4: 60 g/m2 to 220 g/m2 (16 lbs bond to 80 lbs cover) Multi byp |
| Warm-up time | 200 sec.*5 |
| Memory | 6 GB (copy/print shared) 1 TB HDD*6 |
| Power requeirements | AC 220 V to 240 V, 13 A, 50/60 Hz |
| Power consumption | Max. 2.99 kW (220 V to 240 V) |
| Dimensions(W×D×H) including document cover | 1,099 x 775 x 1,529 mm (43 9/32" x 30 33/64" x 60 13/64") |
| Weight(approx.) | 276 kg (608.5 lbs) |
| COPIER (-) | |
| Original size | Max. A3 (11" x 17") |
| First copy time | 3.2 sec. |
| Resolution | Scan: 600 x 600 dpi, 600 x 400 dpi Print: 1,200 x 1,200 dpi, 600 x 600 dpi |
| Continuous copy | Max. 9,999 copies |
| Gradation | Equivalent to 256 levels |
| Zoom range | 25% to 400% (25% to 200% using DSPF) in 1% increments |
| Preset copy rations | Metric: 10 ratios (5R/5E), inch: 8 ratios (4R/4E) |
| NETWORK PRINTER (-) | |
| Resolution | 1,200 x 1,200 dpi, 600 x 600 dpi |
| Interface | USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T |
| Network protocols | TCP/IP |
| Printing protocols | LPR, Raw TCP (port 9100), POP3 (email printing), HTTP, FTP for downloading print files, IPP, SMB, WSD |
| PDL | PCL 6 emulation, Adobe PostScript 3 |
| Supported OS | Windows Server® 2012, Windows Server® 2012 R2, Windows Server® 2016, Windows Server® 2019, Windows® 8.1, Windows® 10, Mac OS 10. |
| Available fonts | 80 fonts for PCL, 139 fonts for Adobe PostScript 3 |
| Network Scanner (-) | |
| Scan method | Push scan (via control panel) Pull scan (TWAIN-compliant application) |
| Scan speed | One-sided: Max. 120 originals/min. Two-sided: Max. 240 originals/min. |
| Resolution | Push scan: 100, 150, 200, 300, 400, 600 dpi Pull scan: 75, 100, 150, 200, 300, 400, 600 dpi 50 dpi to 9,600 dpi via user setting |
| File formats | TIFF, PDF, PDF/A-1a, PDF/A-1b, encrypted PDF, XPS, compact PDF*11, JPEG*11, searchable PDF, OOXML (pptx, xlsx, docx), text (TXT |
| Scan destinations | Scan to email/desktop*12/FTP server/network folder (SMB)/USB drive/local drive |
| Document Filing (-) | |
| Document filing capacity | Main and custom folders: 35,000 pages or 5,000 files Quick file folder: 10,000 pages or 1,000 files |
| Stored jobs | Copy, print, scan |
| Storage folders | Quick file folder, main folder, custom folder (max. 1,000 folders) |
| Fiery®Print Server (-) | |
| Type | External server |
| System software | Fiery FS400 Pro |
| Operating system | Windows® 10 |
| CPU | Intel® Pentium® G5400, 3.7 GHz |
| Memory | 8 GB DDR SDRAM 500 GB HDD |
| Resolution | 1,200 x 1,200 dpi, 600 x 600 dpi (PS, PCL) |
| Supported OS | Windows Server® 2016, Windows Server® 2019, Windows® 8.1*14, Windows® 10, Mac OS 10.14, 10.15, 11 |
| Network protocols | TCP/IP, LDAP, IPX iPrint |
| Interface | Gigabit Ethernet |
| Printing protocols | LPD, PAP, SMB, port 9100, IPP, FTP printing, email print, WSD |
| PDL | Adobe PostScript 3 |
| Available fonts | 138 fonts for Adobe PostScript 3 |
| Power requirements | AC 100 V to 240 V, 50/60 HZ |
| Power consumption (max.) | Max. 150 W |
| Dimensions (W x D x H) | 248 x 204 x 384 mm (9 49/64" x 8 3/64" x 15 1/8") |
| Weight (approx.) | 5.9 kg (13.0 lbs) |
