Digital Full Colour Multifunctional System
An Intelligent Productivity Booster at Work

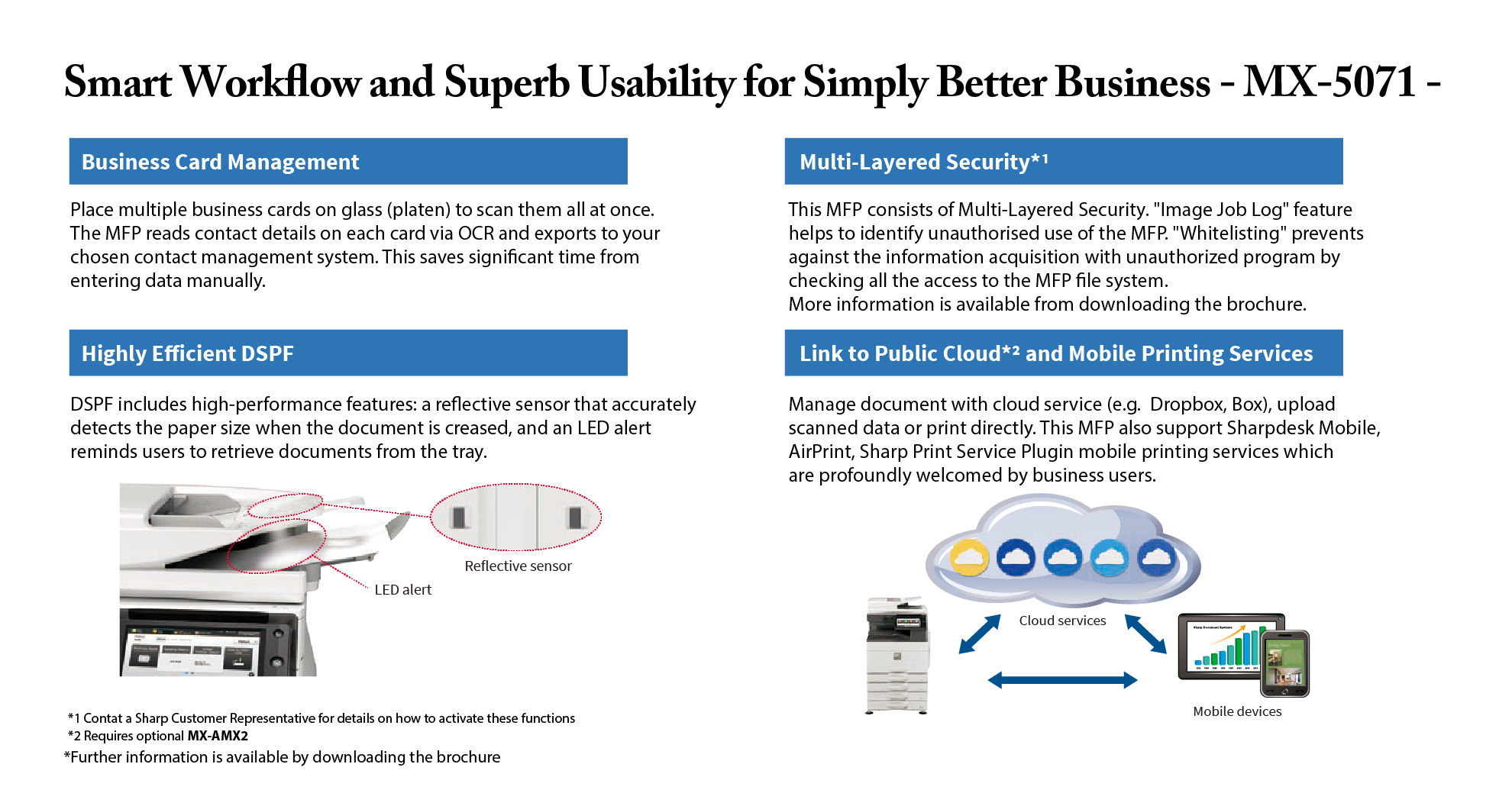

MX-5071 makes document processes easy, secure, and efficient for everyone in your team. Super-Efficient Color and B/W Output. High Productivity with Fast output of 50ppm in B/W and in full color. First copy comes out in just 3.7 sec in B/W and 4.8 sec in full color. Superb usability with a motion sensor, and intuitive operation.
This Color MFP also features "Automatic Toner Cartridge Eject Function" which is purely Sharp original function. Completely empty cartridges will expel for replacement making the process very fast and easy to replace the empty toner.
The MFP can easily integrated with 3rd party network applications such as Kayleigh and PaperCut with Sharp OSA (Open Systems Architecture). Quick and Highly Secure, Users can use enterprise-grade features and share information safely on the cloud with this MFP.
This A3 Full-Color MFP won prestigious Buyers Lab (BLI) awards from Keypoint Intelligence
● BLI PaceSetter Award in Ease of Use: Enterprise Devices 2018-2019
● BLI 2019 Copier MFP Line of the Year Award - New to the Line
| GENERAL (-) | |
| Type | Desktop |
| Engine speed (colour & B/W) | A4 : Max. 50 ppm, A3 : Max. 26 ppm, SRA3: Max. 24 ppm |
| Control panel display | 10.1-inch colour LCD touchscreen |
| Paper size | Max. SRA3 (12" x 18"), min. A5 (5 1/2" x 8 1/2"*2) |
| Paper capacity(80 g/m²) | Standard: 650 sheets , Maximum: 6,300 sheets |
| Paper weight | Tray: 60 g/m2 to 300 g/m2 , Multi-bypass tray: 55 g/m2 to 300 g/m2 |
| Warm-up time | Colour: 31 sec., B/W: 26 sec. |
| Memory | 5 GB (copy/print shared) |
| Power requeirements | Rated local AC voltage ±10%, 50/60 Hz |
| Power consumption | Max. 2.07 kW (220 V to 240 V), max. 1.65 kW (110 V) |
| Dimensions(W×D×H) including document cover | 616 x 660 x 838 mm |
| Weight(approx.) | 90 kg |
| COPIER (-) | |
| Original size | Max. A3 (11" x 17") |
| First copy time | Colour: 4.8 sec., B/W: 3.7 sec. |
| Resolution | Scan (colour): 600 x 600 dpi, Scan (B/W): 600 x 600 dpi, 600 x 400 dpi, 600 x 300 dpi, Print (colour): 600 x 600 dpi, Print (B/W |
| Continuous copy | Max. 9,999 copies |
| Gradation | Equivalent to 256 levels |
| Zoom range | 25% to 400% (25% to 200% using DSPF) in 1% increments |
| Preset copy rations | Metric: 10 ratios (5R/5E), inch: 8 ratios (4R/4E) |
| NETWORK PRINTER (-) | |
| Memory | - |
| Resolution | 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi |
| Interface | USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T, wireless LAN (IEEE 802.11 b/g/n) |
| Network protocols | TCP/IP |
| Printing protocols | LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, IPP, SMB, WSD |
| PDL | PCL 6 emulation, Adobe® PostScript® 3™ |
| Supported OS | Windows Server® 2016, Windows® 7, Windows® 8.1, Windows® 10, Mac OS 10.11, 10.12, 10.13, 10.14 |
| Available fonts | 80 fonts for PCL, 139 fonts for Adobe PostScript 3 |
| COLOUR SCANNER (-) | |
| Resolution | - |
| File formats | - |
| Protocols | - |
| Scanner utility | - |
| Network Scanner (-) | |
| Scan method | Push scan (via control panel), Pull scan (TWAIN-compliant application) |
| Scan speed | One-sided: Max. 110 originals/min, Two-sided: Max. 220 originals/min. |
| Resolution | Push scan: 100, 150, 200, 300, 400, 600 dpi Pull scan: 75, 100, 150, 200, 300, 400, 600 dpi, 50 dpi to 9,600 dpi via user settin |
| File formats | TIFF, PDF, PDF/A-1a, PDF/A-1b, encrypted PDF, XPS, compact PDF, JPEG, searchable PDF, OOXML (pptx, xlsx, docx) etc |
| Scanner utility | - |
| Scan destinations | Scan to e-mail/desktop/FTP server/network folder (SMB)/ USB drive/HDD |
| Document Filing (-) | |
| Document filing capacity | Main and custom folders: 20,000 pages or 3,000 files, Quick file folder: 10,000 pages or 1,000 files |
| Stored jobs | Copy, print, scan, fax |
| Storage folders | Quick file folder, main folder, custom folder (max. 1,000 folders) |
| Confidential storage | - |
| B/W Facsimile (-) | |
| Compression method | MH/MR/MMR/JBIG |
| Communication protocol | Super G3/G3 |
| Transmission time | Less than 3 seconds |
| Modem speed | 33,600 bps to 2,400 bps with automatic fallback |
| Transmission resolution | From Standard (203.2 x 97.8 dpi) to Ultra Fine (406.4 x 391 dpi) |
| Recording size | A3 to A5 |
| Memory | 1 GB (built-in) |
| Grey scale levels | Equivalent to 256 levels |
| Fiery®Print Server (-) | |
| Type | - |
| System software | - |
| Operating system | - |
| CPU | - |
| Memory | - |
| Resolution | - |
| Supported OS | - |
| Network protocols | - |
| Interface | - |
| Printing protocols | - |
| PDL | - |
| Available fonts | - |
| Power requirements | - |
| Power consumption (max.) | - |
| Dimensions (W x D x H) | - |
| Weight (approx.) | - |
