Sharp Digital Full Colour Multifunctional System
Free to Fit
Perfect for your business

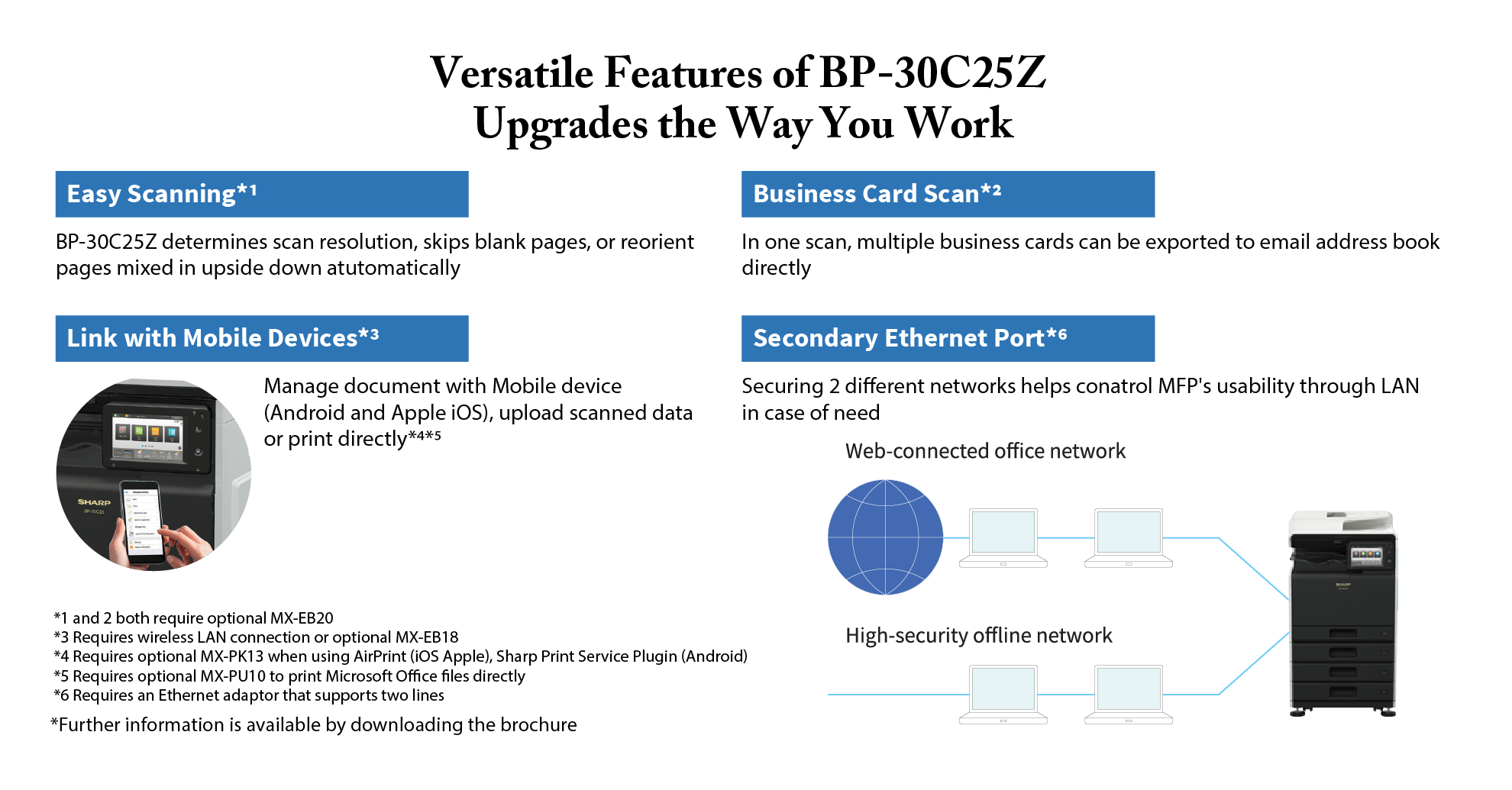

BP-30C25 is a versatile full-color A3 MFP built to match diverse range of workstyle. From capability of delivering Cloud Services, versatile business used functions, and to high level of security features, BP-30C25 is ready to be perfect for your business
| GENERAL (-) | |
| Type | Desktop |
| Engine speed (colour & B/W) | A4 (8 1/2" x 11")*1: Max. 25 ppm, A3 (11" x 17"): Max. 14 ppm |
| Control panel display | 7.0-inch colour LCD touchscreen |
| Paper size | Max. A3W (12" x 18"), min. A6 (5 1/2" x 8 1/2") |
| Paper capacity(80 g/m²) | Standard: 350 sheets (250-sheet tray and 100-sheet multi bypass tray), Maximum:1,850 sheets (350 sheets & optional 3 x 500-sheet |
| Paper weight | Tray 1: 60 g/m2 to 105 g/m2, Trays 2–4 (BP-CS10/DE10): 60 g/m2 to 220 g/m2, Multi bypass tray: 55 g/m2 to 256 g/m2 |
| Warm-up time | 17 sec. |
| Memory | 5 GB (copy/print shared), 128 GB SSD |
| Power requeirements | Rated local AC voltage ±10%, 50/60 Hz |
| Power consumption | Max. 1.84 kW (220 V to 240 V) |
| Dimensions(W×D×H) including document cover | 568 x 630 x 653 mm |
| Weight(approx.) | 54 kg |
| COPIER (-) | |
| Original size | Max. A3 (11" x 17") |
| First copy time | Colour: 11.0 sec., B/W: 8.0 sec. |
| Resolution | Scan (colour): 600 x 600 dpi, Scan (B/W): 600 x 600 dpi, 600 x 400 dpi, Print: 600 x 600 dpi, 9,600 (equivalent) x 600 dpi |
| Continuous copy | Max. 9,999 copies |
| Gradation | Equivalent to 256 levels |
| Zoom range | 25% to 400% (25% to 200% using RSPF) in 1% increments |
| Preset copy rations | Metric: 10 ratios (5R/5E), inch: 8 ratios (4R/4E) |
| NETWORK PRINTER (-) | |
| Resolution | 600 x 600 dpi, 9,600 (equivalent) x 600 dpi |
| Interface | USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T, wireless LAN (IEEE 802.11 b/g/n) |
| Network protocols | TCP/IP |
| Printing protocols | LPR, Raw TCP (port 9100), POP3 (email printing), HTTP, FTP for downloading print files, IPP, SMB, WSD |
| PDL | Standard: PCL 6 emulation, Option: Adobe® PostScript® 3™ |
| Supported OS | Windows Server® 2012, Windows Server® 2012 R2, Windows Server® 2016, Windows Server® 2019, Windows® 8.1, Windows® 10, Mac OS 10 |
| Available fonts | 80 fonts for PCL, 139 fonts for Adobe PostScript 3 |
| COLOUR SCANNER (-) | |
| Resolution | - |
| File formats | - |
| Protocols | - |
| Scanner utility | - |
| Network Scanner (-) | |
| Scan method | Push scan (via control panel), Pull scan (TWAIN-compliant application) |
| Scan speed | Colour & B/W: Max. 52 originals/min. |
| Resolution | Push scan: 100, 150, 200, 300, 400, 600 dpi,Pull scan: 75, 100, 150, 200, 300, 400, 600 dpi 50 dpi to 9,600 dpi via user setting |
| File formats | TIFF, PDF, PDF/A-1a, PDF/A-1b, encrypted PDF, XPS, compact PDF, JPEG, searchable PDF, OOXML (pptx, xlsx, docx), text (TXT[UTF-8] |
| Scanner utility | - |
| Scan destinations | Scan to email/desktop/FTP server/network folder (SMB)/ USB drive/local drive |
| Document Filing (-) | |
| Document filing capacity | Main and custom folders: 5,000 pages or 500 files Quick file folder: 5,000 pages or 500 files |
| Stored jobs | Copy, print, scan, fax |
| Storage folders | Quick file folder, main folder, custom folder (max. 1,000 folders) |
| Confidential storage | - |
| B/W Facsimile (-) | |
| Compression method | - |
| Communication protocol | - |
| Transmission time | - |
| Modem speed | - |
| Transmission resolution | - |
| Recording size | - |
| Memory | - |
| Grey scale levels | - |
| Fiery®Print Server (-) | |
| Type | - |
| System software | - |
| Operating system | - |
| CPU | - |
| Memory | - |
| Resolution | - |
| Supported OS | - |
| Network protocols | - |
| Interface | - |
| Printing protocols | - |
| PDL | - |
| Available fonts | - |
| Power requirements | - |
| Power consumption (max.) | - |
| Dimensions (W x D x H) | - |
| Weight (approx.) | - |
